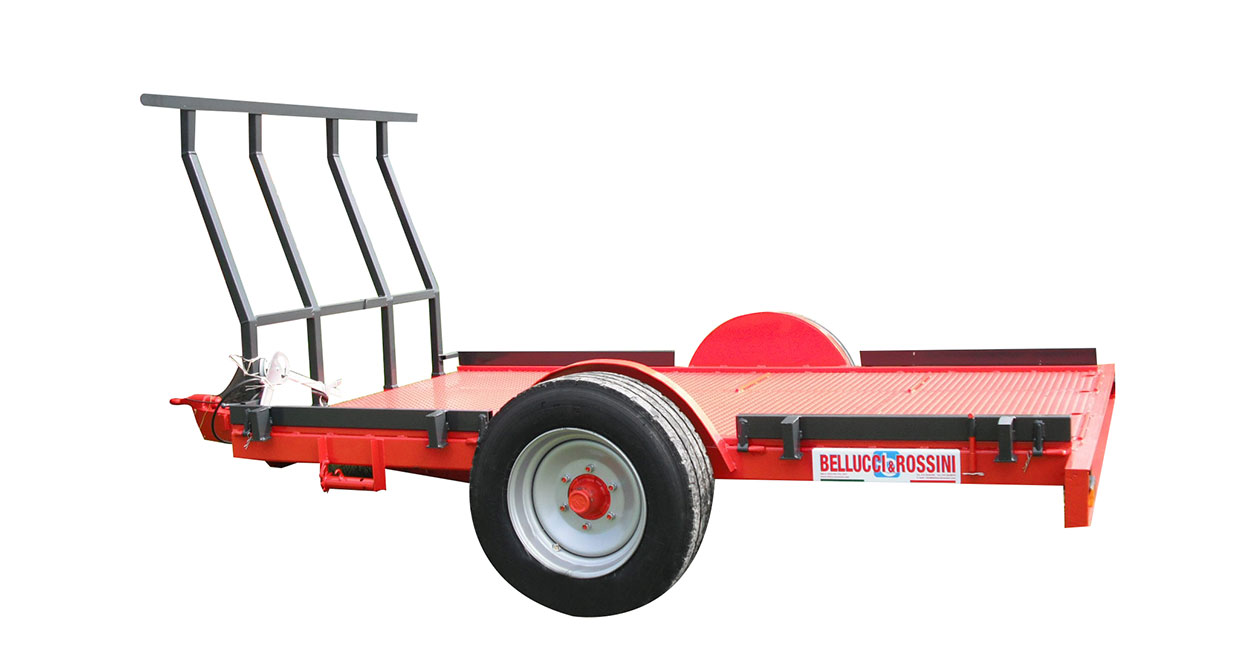

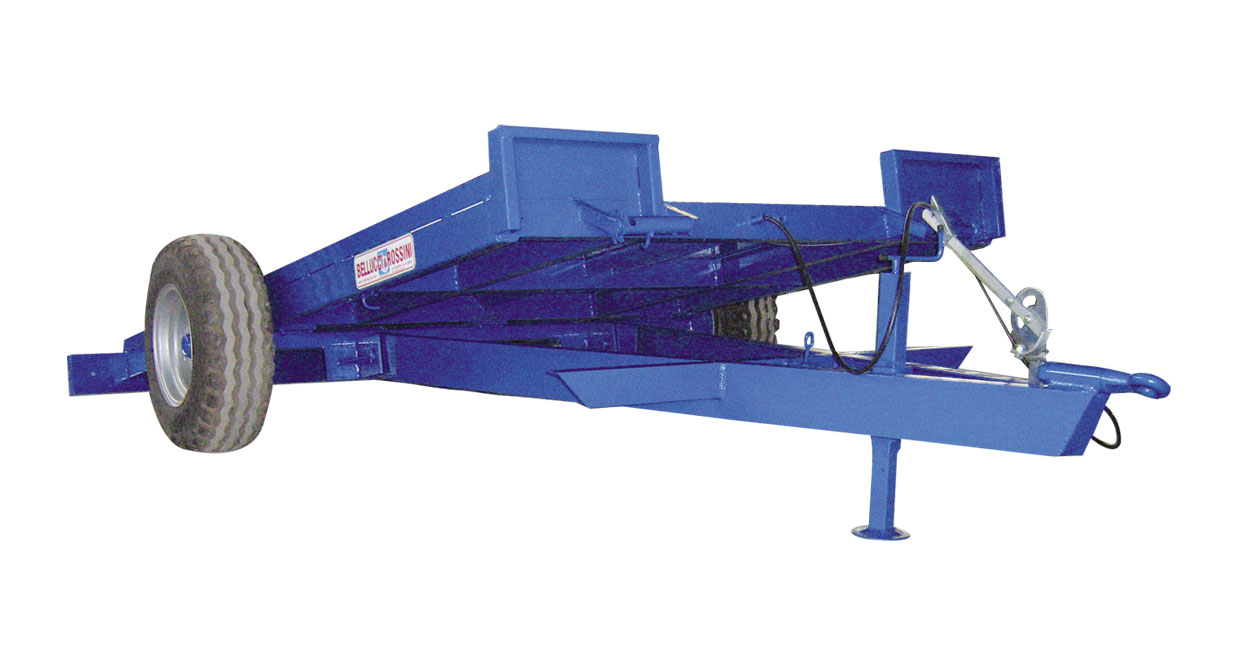

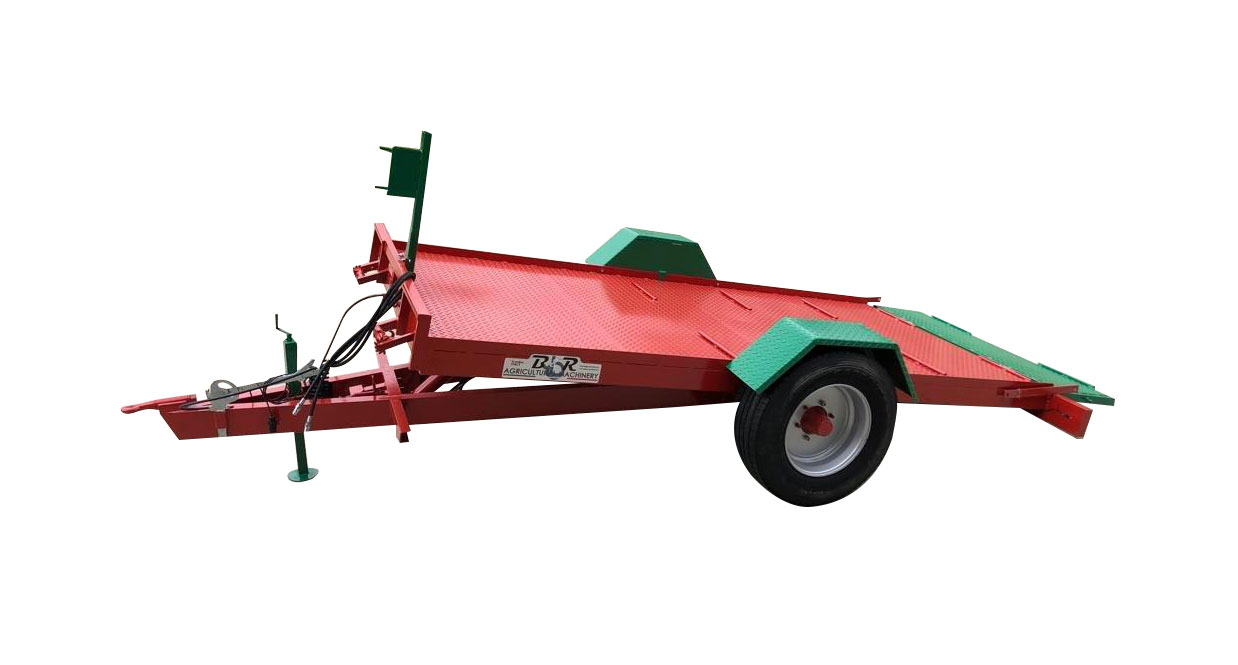

FLATBED TRAILER WITH SINGLE AXLE

Rigid axle with single wheels - Grain – rice sheet platform - Adjustable parking jack - Mechanical brakes - Electric light system - External wheels

Optional

Hydraulic tipping with single or double effect cylinder - Winches - Spare wheel support - Poles for bales - Bale holder frames Hydraulic brake - Pneumatic brake - N.02 mudguards - Rear ramp - Front side


MODEL
DIMENSIONS (mm) FLOOR HEIGHT FROM
THE GROUND (mm)
CAPACITY (Ton) WEIGHT KG. ABOUT WHEELS OR SIMILAR
BR-40/TC 3000X1700 50 4 800 245/70 R17.5
BR-50/TC 3400X1900 58 5 950 265/70 R19.5
BR-60/TC 4000X1900 58 5 1100 265/70 R19.5
BR-60/TC 4000X1900 58 6 1100 285/70 R19.5
